The most portable test equipment on the market in a compact pack. Testing capabilities include:
Electrical Safety Analyzer — Safe-T Sim®
- One-touch Automated Testing – 20 Amp Capacity
- User-defined tests and Pass/Fail limits
- ECG and Respiration Simulation
- Electronic test reports via Bluetooth Safe-T Sim App – Runs on smart phones, tablets and PC
- Automatically generates complete test report – App stores up to 1000 records

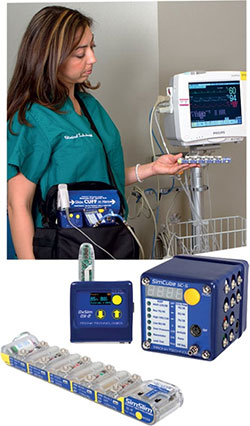

Vital Signs Simulation – SimCube System ADVANCED
- 12-lead ECG, Respiration, NIBP, SpO2, 4-IBP, Cardiac Output, YSI Temperature, Digital manometer
- Test all parameters simultaneously
- Saturation, pulse rates and perfusion levels in 1-digit increments
- Auto Detection of SpO2 manufacturer
- Multi-Parameter simulator that runs up to 10 years w/o charging
Infusion Pump Analyzer – FlowTrax
- Fastest, most accurate analyzer on the market
- Results within a 1% accuracy in 3 minutes or less
- Electronic occlusion testing
- No re-priming between tests
- Digital stopwatch/timer
Unmatched Portability and Ruggedness
- Smallest test equipment on the market
- Only products designed to pass 50X drop test from 3FT.

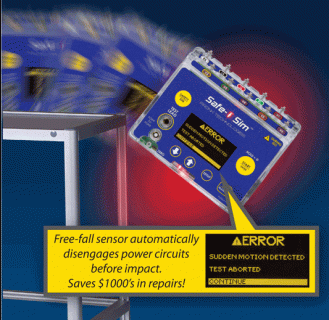

- First safety analyzer with free fall detection – automatically disables unit before hitting the ground
- Industry best 4-year warranty
- Made in U.S.A.
Package Contents
For complete product information including product specifications and reviews, please click here >>>

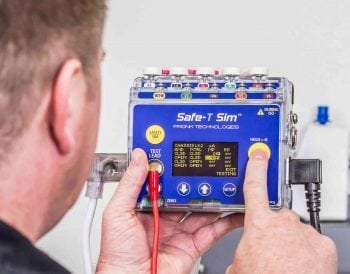

A Breakthrough in Speed, Reliability and Wireless Automation
Automated Electrical Safety Testing Advanced Features*:
User-Defined Tests with Adjustable Pass/Fail Limits: Each electrical safety test can be programmed On/Off and test limits for each test can be customized to fit your testing protocols. Customize autosequences of tests to match your procedures.
Default Test Protocols available for: AAMI ES1 – 1993, NFPA99, IEC**. (**model ST-1-IEC)
1-button Automated Electrical Safety Testing: select autosequence, press START and Safe-T Sim will perform all programmed tests without further interaction. If you are called away, view report upon return.
Mobilize Solution dramatically reduces testing time and automatically records all your service work:

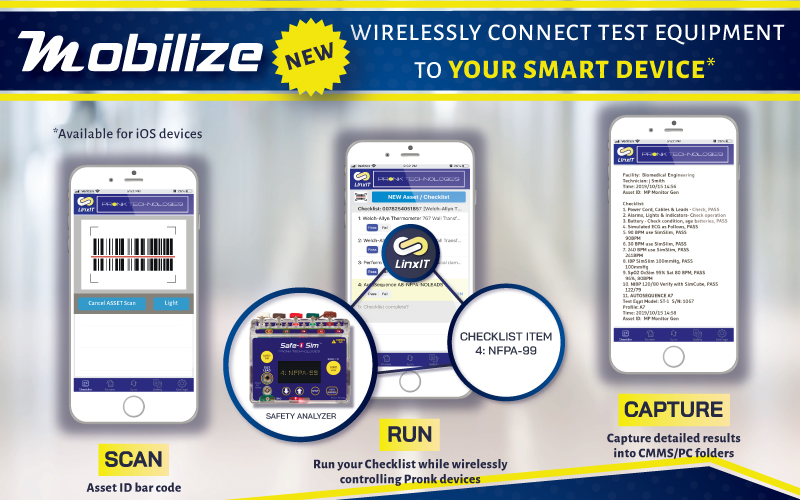

The Mobilize apps allow your smart device* to remotely control the Safe-T Sim Mobilize Safety Analyzer. Run electrical safety test autosequences and 12-lead ECG and Respiration simulations with real-time electronic data capture. See Mobilize video.
Create custom test protocols by medical device type and save them onto app or run your CMMS-driven test procedures.
Snap results into record by touching result boxes or simply tap Pass/Fail
Use Mobilize Solution autonomously or connected to your CMMS
Capture safety testing measurements and test limits including delta in units and delta as a percentage, where applicable
Image of the device under test can be tied into a record
Calibration date of Pronk equipment is wirelessly transmitted and captured on all reports
Individual reports or batches of records can be easily exported — work offline and sync later
Combine with other Pronk Mobilize products to control and capture all the testing information into a single electronic report from all products!
App’s built-in barcode scanner ensures device ID is entered into test record
Notes field: add comments into record
App stores up to 1000 records
Print a wireless PM Sticker on the go! Connect a Brother P-Touch Cube Plus Bluetooth printer (Model PT-P710BT) to your smart device. Print a user-defined laminated PM sticker from our App with details you need including next inspection due date. Printer runs on battery, and labels are available in multiple colors.
Additional Safe-T Sim Mobilize Features:

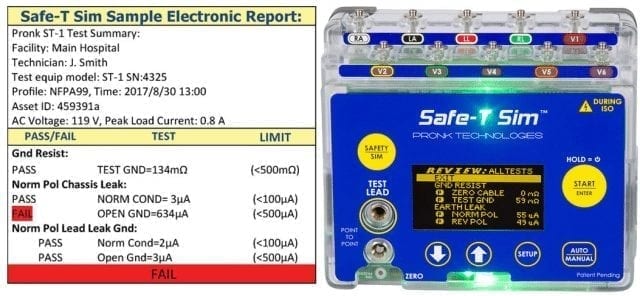

Unit will glow to indicate a Pass or Fail Result: Safe-T Sim Mobilize provides visual and audible feedback of each test plus an overall test result. See P/F results from 10+ feet away: Red = Fail / Green = Pass. Never miss a failing result. Repeat only the failed test, not the entire autosequence, for faster results.
Audible Tone during Ground Resistance Test: immediately verify a good ground connection to device under test without having to stop and read the front of the analyzer.
ECG and Respiration Vital Signs Simulations: automatically starts 12-lead ECG and respiration simulation sequence after safety tests are completed. Adult, Pediatric and Neo automated test sequences. Full-featured control with user-selectable heart and respiration rates in 1-digit increments.

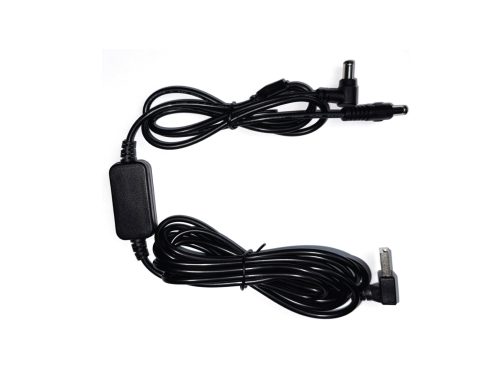

Auxiliary Battery Feature: Keeps analyzer powered on ready for the next test when you are on the move. No need to wait for analyzer to power up or navigate menu back to the test you want.
Full Electrical Safety Testing Capability: 20 Amp current capacity, Ground Resistance, Earth Leakage, Chassis Leakage, Lead Leakage to Ground or Lead Leakage ISO Tests, Point-to-point tests for resistance and leakage, Applied Parts leakage testing.

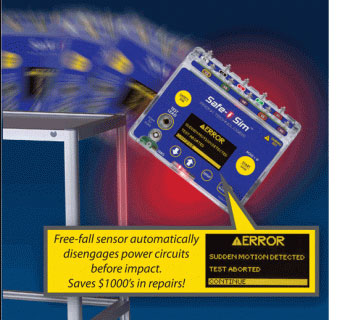

The Most Rugged Analyzer – Passes Drop Testing 50 times from 3 feet: First analyzer with integrated Free-Fall sensor for extra protection from damage when dropped!
*Currently available for Apple iOS. Android and Windows apps available with limited features. Complete Mobilize Android and Windows app is under development. Mobilize products available for sale in North America.
|
For complete product information including product specifications and reviews, please click here >>>

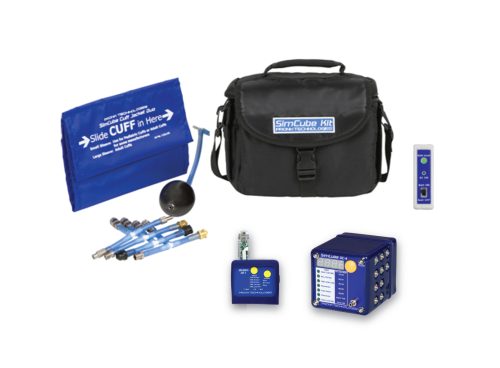

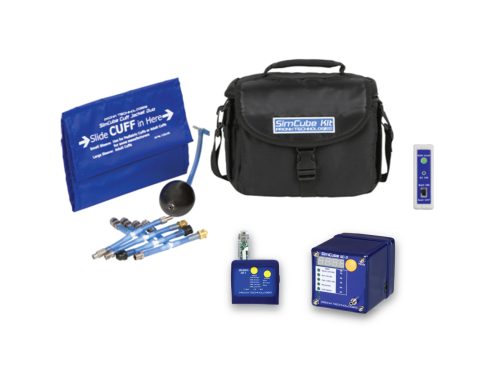

SC-5 SimCube® NIBP Simulator Features:
- Adult (120/80 mmHg), Neonatal (70/40 mmHg), Hypertensive (190/120 mmHg), and Hypotensive (80/40 mmHg) NIBP Simulations
- Digital Manometer
- 12-lead ECG Simulation
- Arrhythmia
- Respiration
- Invasive Blood Pressure (IBP) Dynamic values (120/80, 70/40, 190/120)
- 7 static IBP values (0, 25, 50, 100, 150, 200, 250)
- Heart Rate/Respiration sequence
- Pacer
- Over Pressure (Peak Detect) Test mode measures the peak pressure produced by the patient monitor. The readout latches the highest pressure value sensed, in 0.1mmHg steps.
- Leak Rate Test Mode
Optional Accessories: NIBP Adapters, Carrying Case, Cuff Jacket, ECG Extender Module, Battery Boost, IBP adapters
For complete product information including product specifications and reviews, please click here >>>
OxSim Flex® Optical SpO2 Pulse Oximeter Simulator Features:
- Complete control of simulations!
- Saturations in 1% increments (10-100%)
- Pulse rates in 1 BPM increments (25-240)
- Create custom preset simulations for faster Alarm Testing
- Perfusion Index levels in 1% increments (10-100%)
- Factory Preset Simulations:
- Saturation: 85%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
- Saturation: 95%, Heart Rate: 40 bpm, Perfusion Index: approx. 2.0
- Saturation: 98%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
- Saturation: 98%, Heart Rate: 140 bpm, Perfusion Index: approx. 2.0
- Saturation: 99%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
- Masimo Rainbow SET® Compatible
- Automatic detection of SpO2 Manufacturer
- Color Display – OLED Technology
- Only 5 oz. (0.14 kg, excluding battery)
- Fast and Accurate
- Battery Operated – minimum 10 hours
- Power Save Mode
- Rugged: Polycarbonate housing. Drop tested 65 times from a height of 3 feet (1m) to a hard surface with no failures!
- Field-upgradable Software
- Four-year Limited Warranty
Optional Accessories: Carrying Case
For complete product information including product specifications and reviews, please click here >>>”
SL-8 SimSlim® Multi-Parameter Patient Simulator Features:
- 12-lead ECG:
- 8 Selectable Heart Rates: 30, 60, 90, 120, 140, 160, 200, 240 bpm
- 10 Selectable Arrhythmias: NSR w/ PVCs, VTACH, VFIB, Asys, Bigeminy, Pacer, Trigeminy, ST+, 2nd Deg. Block, Square Wave
- 8 Banana Plug Interface
- Respiration:
- 8 Selectable Rates: 15, 30, 45, 60, 70, 80, 100, 120 bpm
- 4 IBP Channels:
- 8 Dynamic: 120/80, 60/30, 30/10, 20/10, 125/15, 60/5, 8/2, 4/1 mmHg
- 7 Static: 0, 25, 50, 100, 150, 200, 250 mmHg

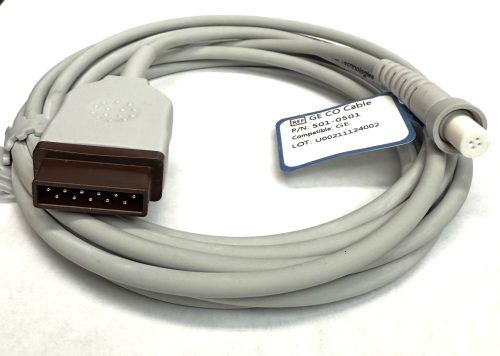

- Cardiac Output Simulation:
- 3, 5 and 7 l/m. No adapter cable required.
- YSI 700 and 400 Temp Simulations:
- 25, 37, and 40 degrees Celsius
- Battery Life:
- Total life depends on usage: 5-10 years, all day, every day. No charging or changing required.
Optional Accessories: Additional IBP Adapters, Carrying Case
For complete product information including product specifications and reviews, please click here >>>

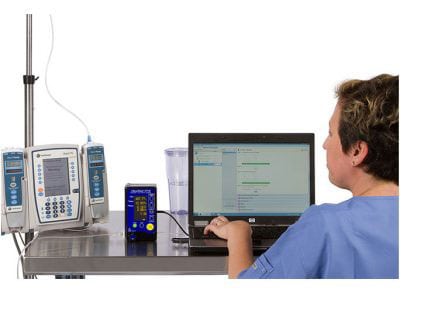

FT-2 FlowTrax Features
Unbeatable Value
● The fastest, most accurate infusion pump analyzer on the market
● NEW Quick Prime — faster priming with no stopping to re-prime between tests!
● First Multifunction IV Pump Analyzer: eliminate expense and calibration of four pieces of test equipment with one device
● Field Serviceable: the only analyzer with removable sample tube and input luer for easy maintenance.
● All features are NIST traceable.
● Ultra-durable: passes drop testing 50X from 3 ft!
● Operates on two ‘AA’ batteries
● 4-year warranty
UNSURPASSED Rate and Volume Accuracy
● Results within 1% accuracy for rates from 1 ml/hr to 999 ml/hr in less than 3 minutes
● NEW Electronic Occlusion feature
● Test any type of infusion device from PCA, syringe, volumetric to feeding pumps
● Unrivaled speed — requires as little as little as 0.5 ml volume for low rate tests to achieve 1% accuracy — up to 40X faster than other products
● Never miss a test result with Trend feature
● Capture real-time results to any File, Form or Record on your PC with DataSnap
● Market-best measurement resolution of 0.0008 milliliters
Full-Featured Pressure and Vacuum Meter
● 0.5% Accuracy of Reading
● Utilize as standalone pressure meter. Test any type of medical device for pressure or vacuum (-12.5 to +75 PSI).
● NEW Electronic Occlusion Feature (0-40 PSI) with graphical chart and total elapsed time of test
● Measure real time and peak pressure
● 9 units of measure: mmHg, PSI (gauge), inH2O, cmH2O, kPa, atm, inHg, BAR (absolute and gauge)
Temperature Meter
● 0.1% ± 0.2 °C Accuracy
● Compatible with any YSI 400 temperature probe
● Measure fluid, gas or air temperatures (-28.9 to +115.5 °C)
● Test incubators, fluid warmers, freezers and more
Digital Timer / Stop watch
● Integrated digital timer and stop watch
● Automatically starts and stops with fluid measurements.
Pronk Mobilize featured in 24×7’s Cover Story on Innovation in Test Equipment
24×7’s April cover story “Is Your Test Equipment Up to Snuff?” highlights Pronk’s Mobilize platform in the discussions on “Emerging Trends” and “Technologies to Watch.” Greg Alkire, Pronk’s VP of Sales and Marketing, was asked for his insights, including a comment that earned a spotlight in the article: “This is the next frontier we are focused on: creating synergies at the very ground level to ensure medical devices are serviced and maintained at the highest level.” Click to read the article or download here.
The article below was originally published in TechNation magazine. To download, click here.
Mobilize is a complete wireless solution that connects Safe-T Sim® Safety Analyzer, SimCube® and OxSim Flex® Vital Signs Simulators and FlowTrax® IV Pump Analyzer to your smart device. This provides complete flexibility to control all these products from one user interface, set up your own test protocols or run your CMMS procedures right from your Apple iOS device.
Key features include: instantaneous wireless synchronization to Mobilize products, including all simulations, as well as full control of all IV pump and electrical safety analyzer testing functions via the Mobilize Apps; capture all tests performed, measurements are recorded automatically while you work or simply tap pass/fail, add images of device under test into a complete detailed electronic report; app integrated Barcode Scanner and user-configurable wireless PM sticker printing; use app autonomously or integrate to a CMMS. Stores up to 1,000 detailed test records with no monthly/annual license fee required.
For more information, visit www.pronktech.com/mobilize.
As reported in July’s TechNation (click to view article), the BMET PACK PRO makes it easier than ever to travel with all your test equipment between hospitals and clinics. Click to see the BMET PACK PRO video!
Pronk Technologies has introduced the BMET Pack Pro, a compact pack that holds all the Pronk products, accessories and extra space for tools. Simulators (SimCube NIBP, OxSim SpO2, SimSlim Multi-parameter), the new Safe-T Sim Automated Safety Analyzer, and multi-function FlowTrax IV Pump Analyzer all fit within the customized padded compartments to make it easier than ever to travel with all your test equipment between hospitals and clinics. The BMET Pack Pro also includes a padded compartment which holds up to a 15.6-inch laptop/tablet (not included) secure. The compact size of Pronk test equipment combined with an easily transported pack offers maximum mobility and versatility to biomedical engineers.
For more information, contact Pronk Technologies at 800-609-9802 or www.pronktech.com.
