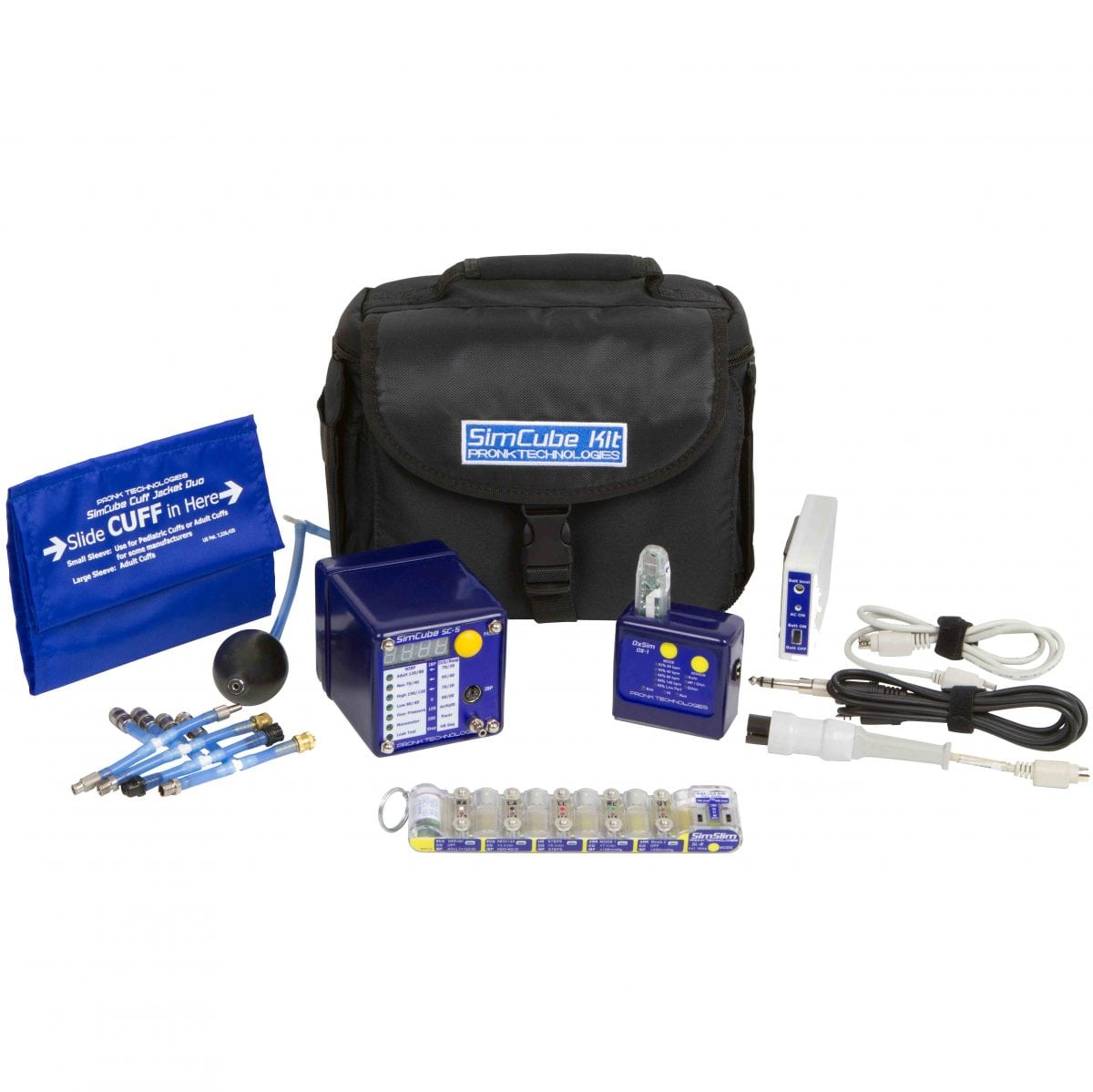

SimCube® Patient Simulation System CLASSIC

For complete product information including product specifications and reviews, please click here >>>

OxSim® Optical SpO2 Pulse Oximeter Tester Features:

• SpO2 Simulations:
  • Mode 1:
    • Saturation: 85%
    • Heart Rate: 80 bpm
    • Perfusion Index: approx. 2.0
  • Mode 2:
    • Saturation: 95%
    • Heart Rate: 40 bpm
    • Perfusion Index: approx. 2.0
  • Mode 3:
    • Saturation: 98%
    • Heart Rate: 80 bpm
    • Perfusion Index: approx. 2.0
  • Mode 4:
    • Saturation: 98%
    • Heart Rate: 140 bpm
    • Perfusion Index: approx. 2.0
  • Mode 5:
    • Saturation: 99%
    • Heart Rate: 80 bpm
    • Perfusion Index: approx. 0.2
• Size:
  • 2-1/2″ x 2-1/2″ x 1-1/4″ (6.4 x 6.4 x 3.2 cm), excluding finger section
• Weight:
  • Only 5 oz. (0.14 kg, excluding battery)
• Simple operation:
  • Just two buttons
• Convenient:
  • No adapter cables to purchase or carry
• Economical:
  • ‘Finger’ is fixed and permanent. No parts to carry or replace annually
• Rugged:
  • Polycarbonate housing. Drop tested 65 time from a height of 3 feet (1m) to a hard surface with no failures!
• Power:
  • 6VDC Adapter or AA battery. Compatible with the Battery Boost — run OxSim & SimCube NIBP Simulator simultaneously.
• Battery Life:
  • Minimum 8 hours. 60 days in sleep mode (unit sleeps after 10 min. with no probe connection)

Package Contents:

• (1) OxSim® Optical SpO2 Pulse Oximeter Tester
• (1) Power Supply (6VDC)
• (1) AA battery
• (1) Certificate of Calibration

Optional Features:

• Serial Communications port provides user control of OxSim for expanded simulation settings.
• Saturation Range
  • 10-100%
• Pulse Rate Range
  • 10-250 BPM
• Perfusion Index Range
  • 0.1 – 2 .0 PI

For complete product information including product specifications and reviews, please click here >>>”

SL-8 SimSlim® Multi-Parameter Patient Simulator Features:

• 12-lead ECG:
• 8 Selectable Heart Rates: 30, 60, 90, 120, 140, 160, 200, 240 bpm
• 10 Selectable Arrhythmias: NSR w/ PVCs, VTACH, VFIB, Asys, Bigeminy, Pacer, Trigeminy, ST+, 2nd Deg. Block, Square Wave
• 8 Banana Plug Interface
• Respiration:
• 8 Selectable Rates: 15, 30, 45, 60, 70, 80, 100, 120 bpm
• 4 IBP Channels:
• 8 Dynamic: 120/80, 60/30, 30/10, 20/10, 125/15, 60/5, 8/2, 4/1 mmHg
• 7 Static: 0, 25, 50, 100, 150, 200, 250 mmHg
• Cardiac Output Simulation:
• 3, 5 and 7 l/m. No adapter cable required.
• YSI 700 and 400 Temp Simulations:
• 25, 37, and 40 degrees Celsius
• Battery Life:
• Total life depends on usage: 5-10 years, all day, every day. No charging or changing required.

Package Contents:

• (1) SL-8 SimSlim Simulator
• (1) IBP adapter of customer choice
• (1) IBP extension cable, 6ft.
• (1) Temperature adapter cable
• (1) Certificate of Calibration

Optional Accessories: Additional IBP Adapters, Carrying Case
